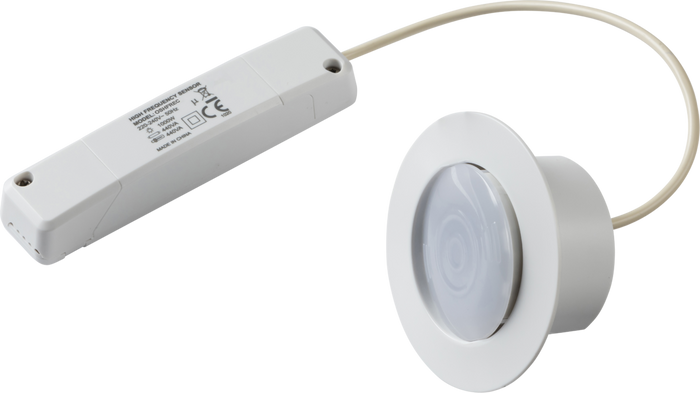

Knightsbridge MLA OSHFREC 230V Recess Mount HF Motion Sensor
$25.96
Sale price
$25.96
Regular price
$36.56
Skip to product information
Knightsbridge MLA OSHFREC 230V Recess Mount HF Motion Sensor
$25.96
Sale price
$25.96
Regular price
$36.56
Recess mounting HF sensor
- 5.8GHz High Frequency sensor
- 230V ~ 50Hz
- Max Load: 1000W Incandescent / 100W LED
- Detection angle: 360
- Detection Range: 3m diameter @ 3m install height
- Time setting: 30s - 30min
- Lux setting: 5-1000 lux
- Sensitivity setting: 1m - 3m
- Operating Temperature: 0 - 45
- Internal Use only (IP20)
- Operational Modes: Auto / Short Pulse / Test / Manual Override
- Require cut out of: 62mm
Technical Details
| NET WEIGHT (KG) | 0.13 |
|---|---|
| FINISH | White |
| DIMENSIONS (MM) | Diameter - 90 Length - 90 Height - 41 Width - 90 Projection - 6 Recessed Depth - 35 |
| CUT-OUT (MM) | Cut-out Diameter - 62 |
| CONSTRUCTION | Construction - Polycarbonate |
| CLASS | II |
| IP RATING | IP20 |
| INPUT VOLTAGE | 230V 50Hz |
| SENSOR TYPE | Microwave |
| SENSOR OVERRIDE | Yes |
| SENSOR DETECTION ANGLE (DEGREES) | 360 |
| OPTIMUM DETECTION RANGE (M) | up to 3m |
| SENSOR DURATION | 30s/1min/5min/ 10min/30min |
| SENSOR LUX SETTINGS | 5-1000 lux |
| WARRANTY | 2year(s) |
